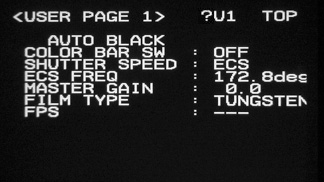

USER PAGE 1 contains the Menu Line Items that are accessed via the LCD panel on the camera body. Typically they are functions that are used on a daily basis. They can be changed in the USER PAGE EDIT screen of USER MENU CUSTOMIZE. Pictured here are the Panavision Default USER PAGE 1 functions: | ||||||
AUTO BLACK used to reset the blacks of the image | ||||||
|
||||||
|
||||||
|
||||||
COLOR BAR SW turns color bars ON and OFF | ||||||
|
||||||
SHUTTER SPEED controls the electronic shutter and determines the effective exposure time for each frame. | ||||||
|
||||||
|
||||||
ECS FREQ are user defined shutter speeds. Pictured here is the European and Australian standard setting of 172.8 degrees. | ||||||
|
||||||
|
||||||
MASTER GAIN changes the amplification of the signal. More gain means more exposure but also more video noise. | ||||||
|
||||||
FILM TYPE changes the color response of the camera | ||||||
|
||||||
FPS is only active when variable frame rate has been selected on page M6 | ||||||
SHUTTER from page P12 is sometimes added to the list. SHUTTER OFF is sometimes called a "360 degree" shutter. SHUTTER OFF increases the exposure by 1 stop relative to 180 degrees, and also increases motion blur. There is no real film equivalent to SHUTTER OFF. | ||||||
